RF Cannulae

Diros OWL® RF Cannulae are manufactured using medical grade stainless steel and insulation creating a rigid, sharp, and smooth cannula.

Category:
  1. General Details

    RF Cannulae

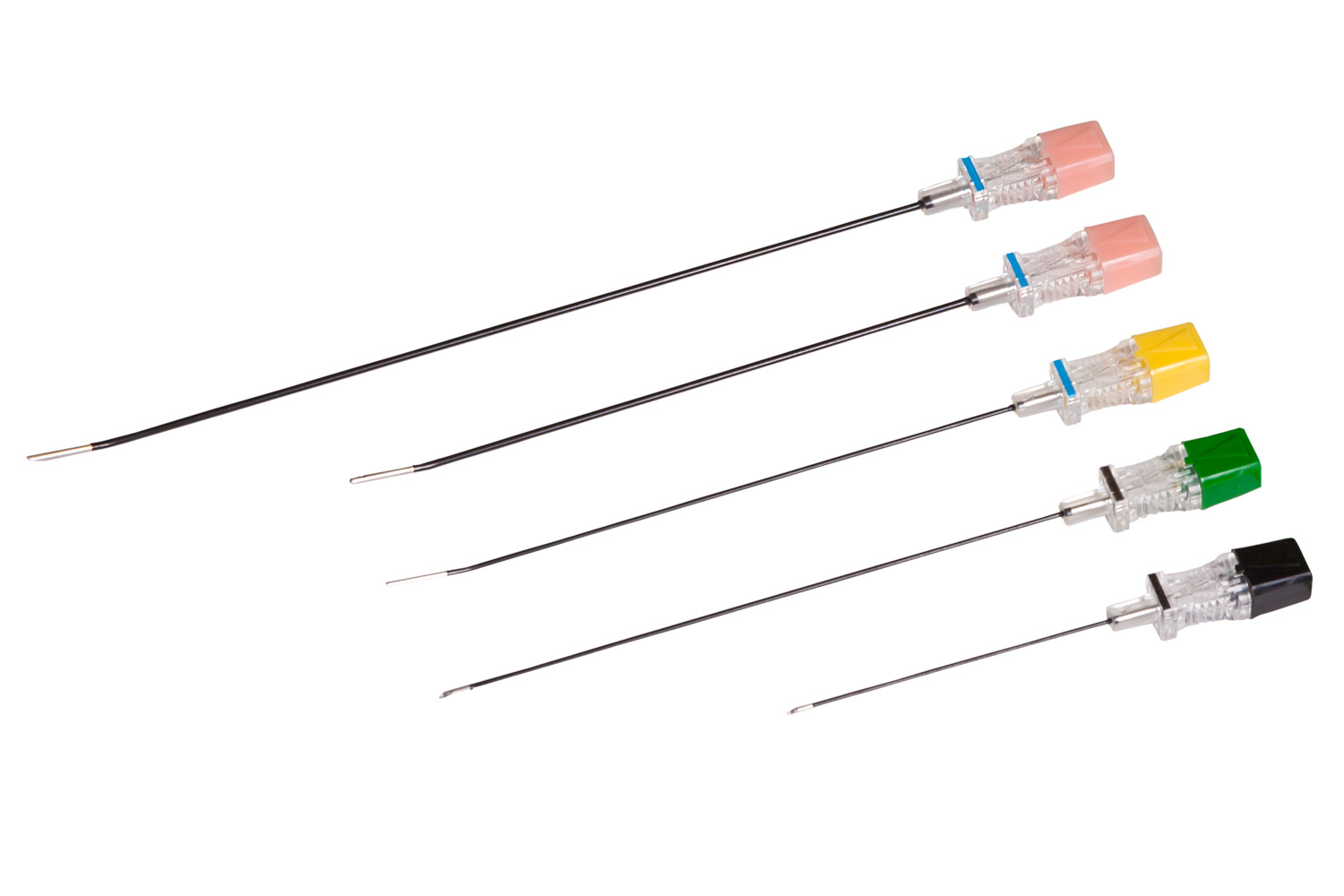

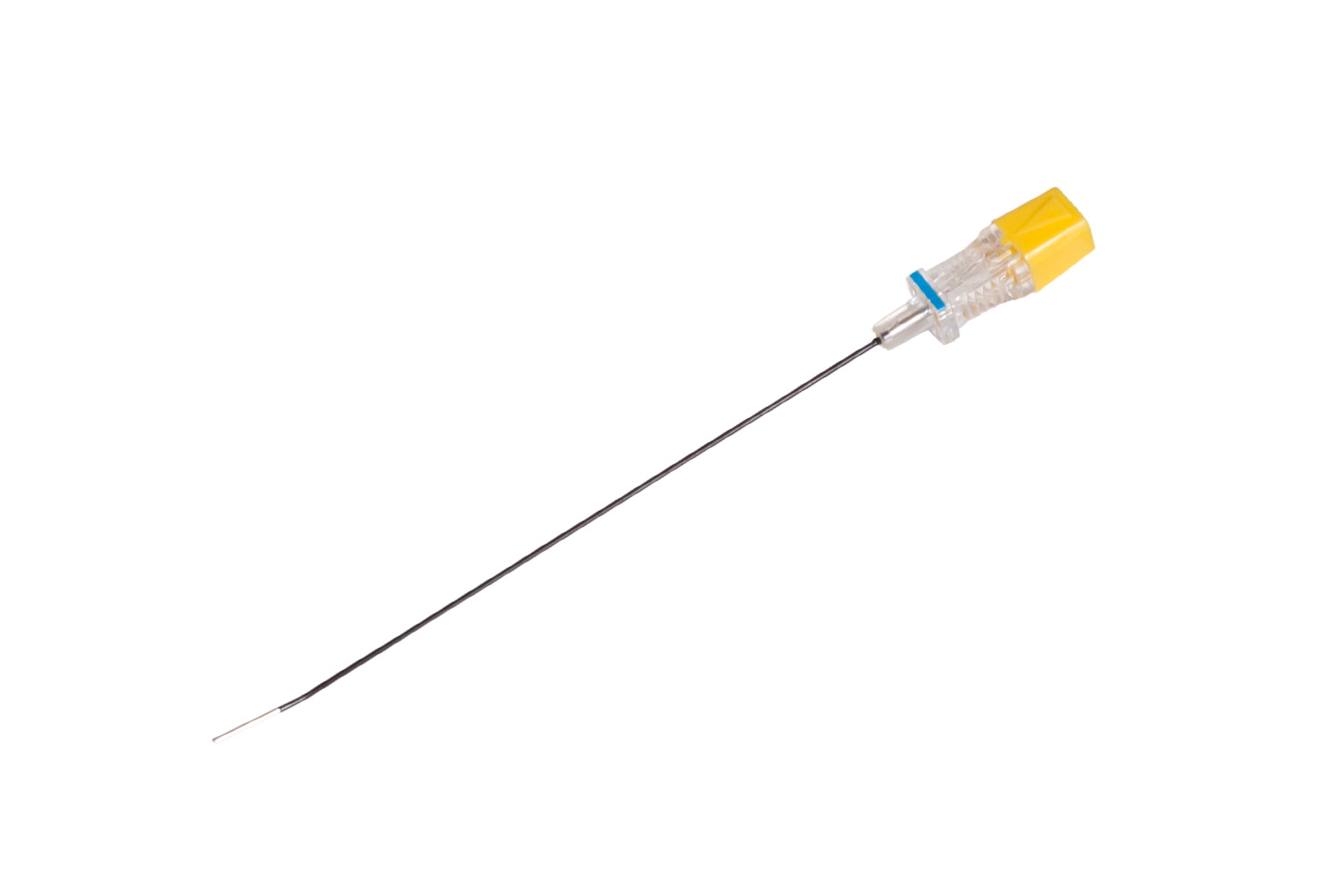

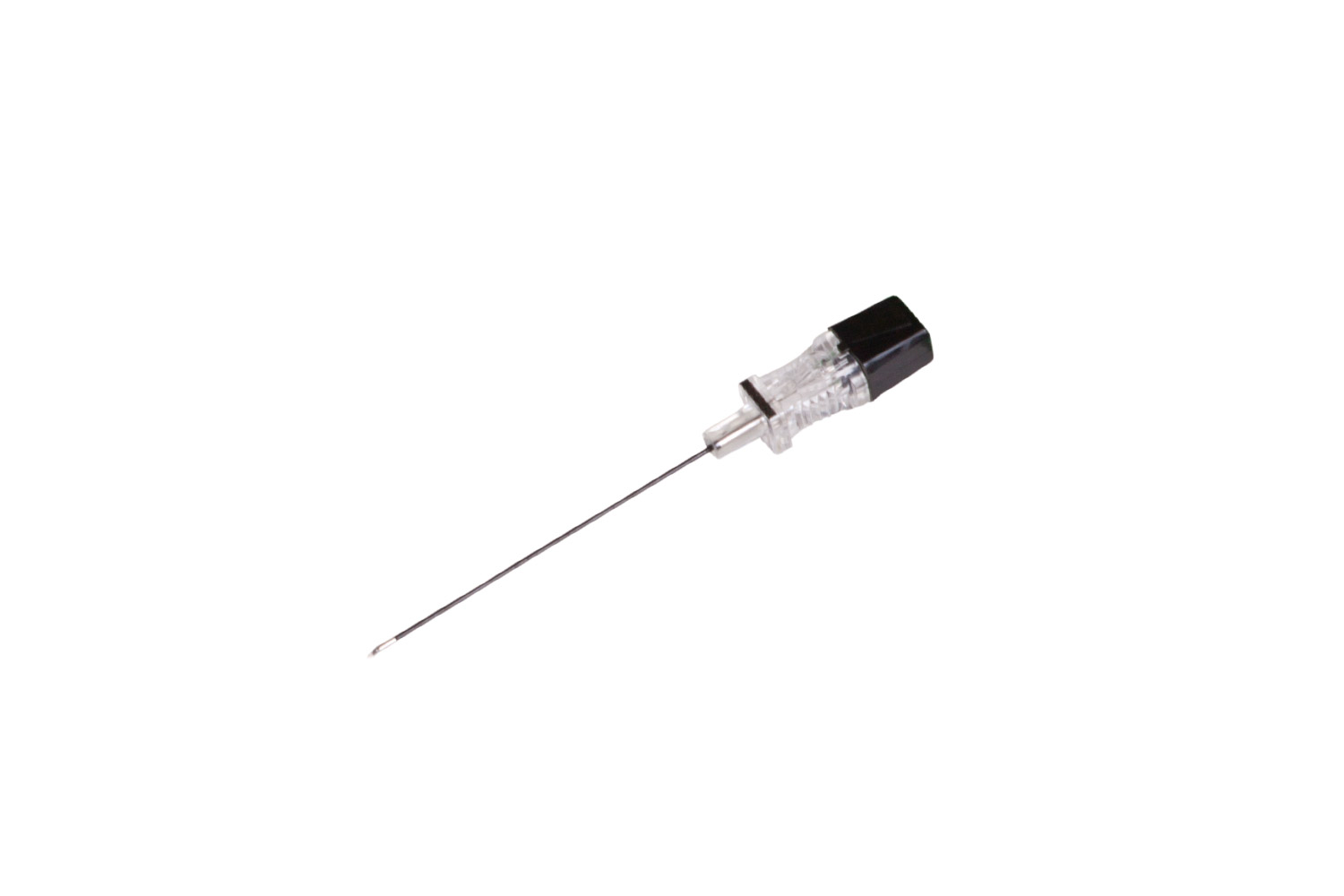

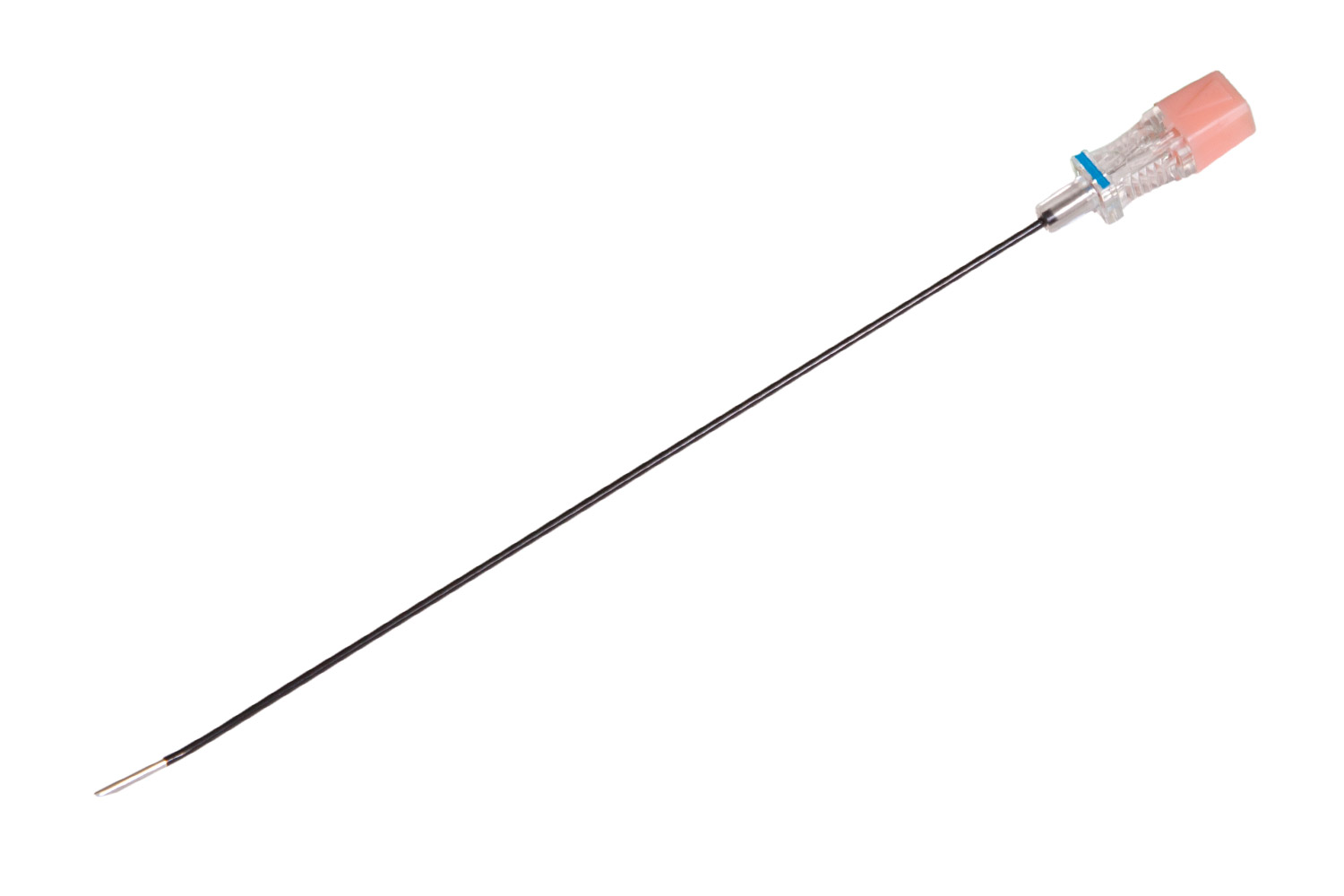

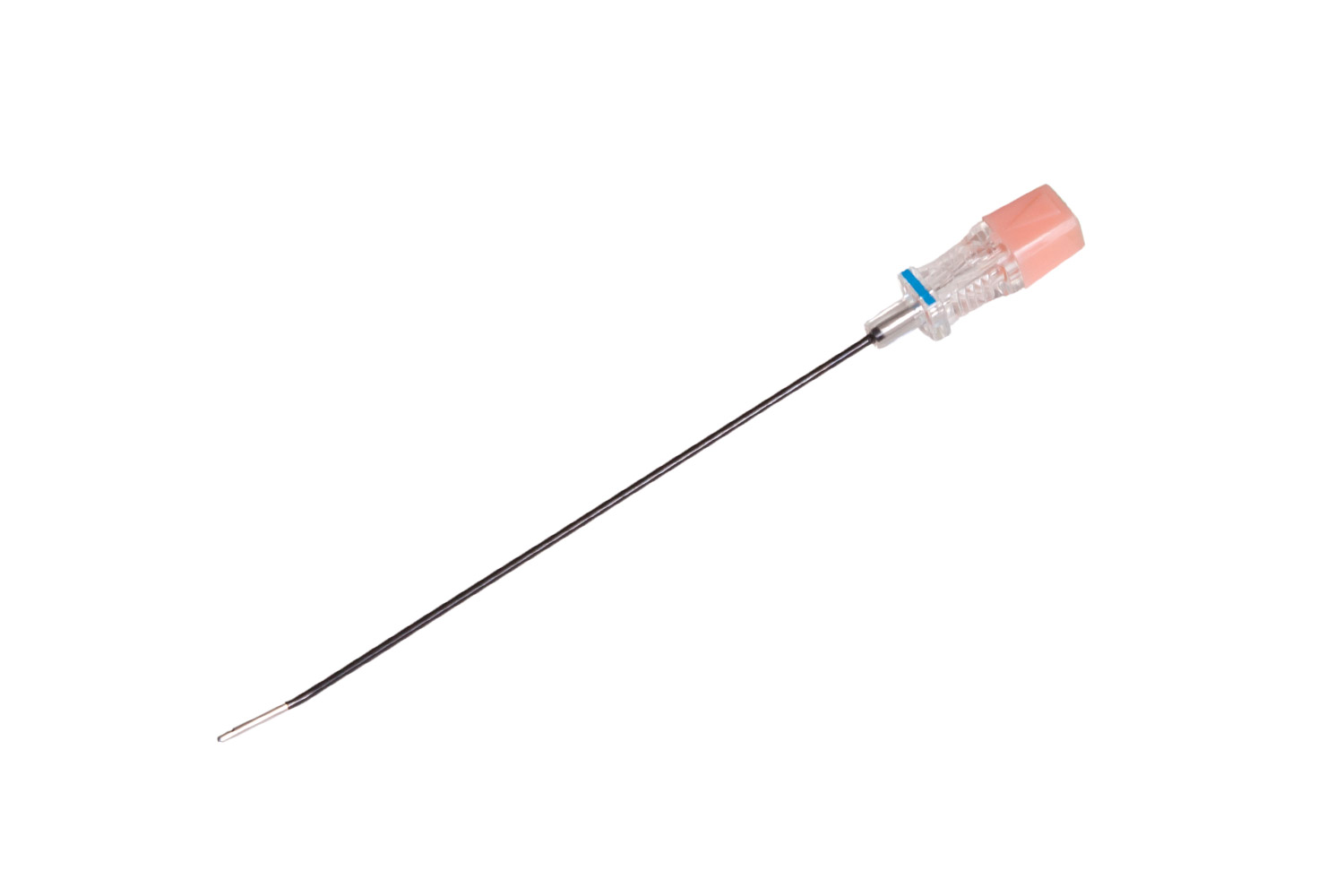

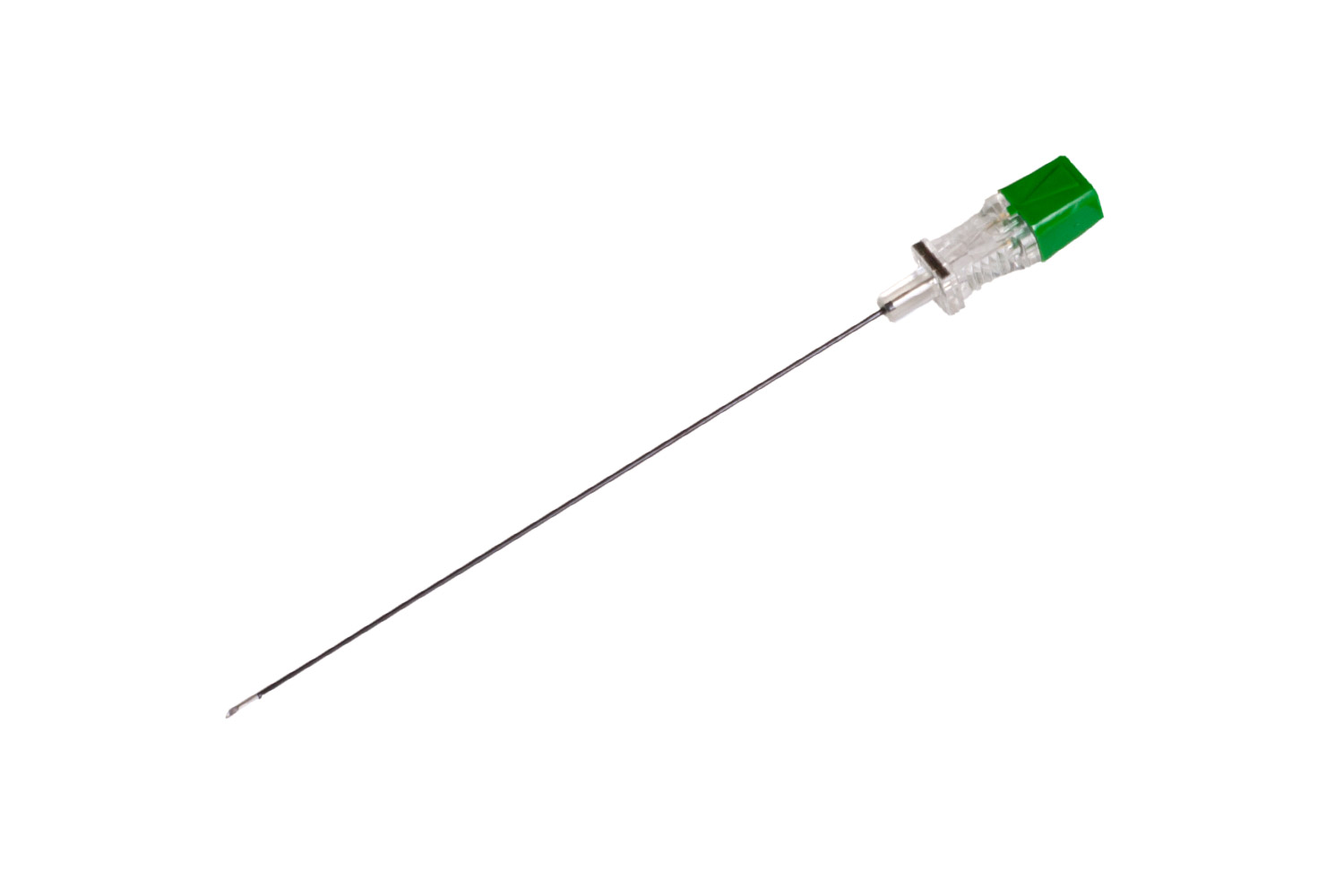

    Diros OWL® RF Cannulae are manufactured using medical grade stainless steel and insulation creating a rigid, sharp, and smooth cannula designed for ease of use and for accurate placement of the cannula bare tip.

    Cannulae are available in diameters ranging from 22 gauge to 16 gauge and are color coded for identification.

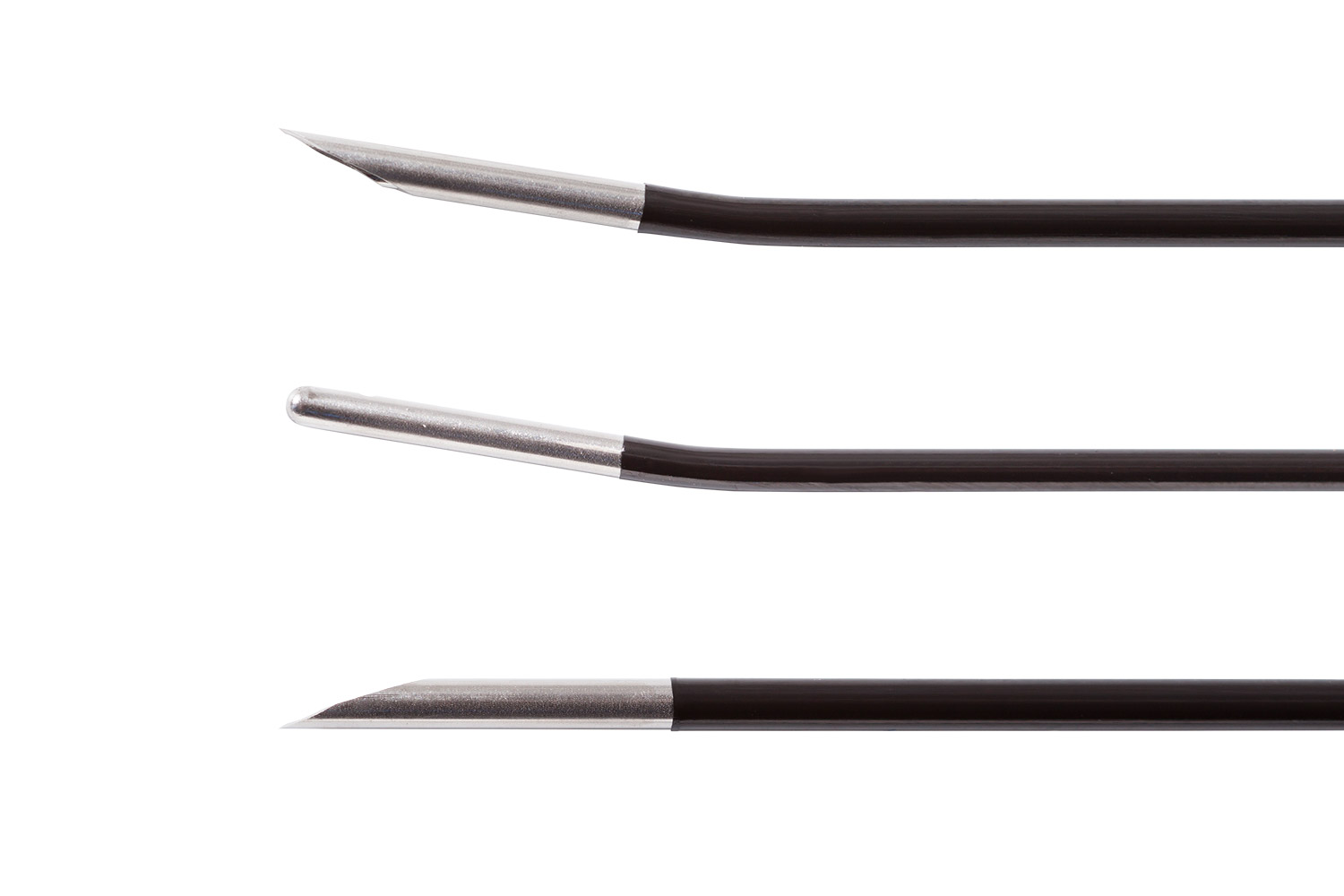

    Bare tip configurations: Sharp Straight, Sharp Curved, Blunt Curved, Blunt Straight.

    The Disposable Diros OWL® RF Cannulae decrease costs, eliminate the possibility of cross-contamination, and are individually packaged/sterilized and offered in a box of 10 pieces.

    Diros OWL® RF Cannulae are to be used with the corresponding length RF Probes, and can be used with either Diros OWL® RF Probes re-useable or disposable.

    Below are some common RF Cannulae configurations. If you require a configuration that you do not see below, please feel free to contact us.

  2. Cannulae Configurations
    DIROS Part No. Gauge Tip Configuration Length (mm) Bare/Active Tip (mm)
    467-022/54/4 22 SHARP STRAIGHT 54 mm 4 mm
    467-022/54/5-SC 22 SHARP CURVED 54 mm 5 mm
    467-022/54/5-BC 22 BLUNT CURVED 54 mm 5 mm
    467-022/54/10 22 SHARP STRAIGHT 54 mm 10 mm
    467-022/54/10-SC 22 SHARP CURVED 54 mm 10 mm
    466-021/50/4 21 SHARP STRAIGHT 50 mm 4 mm
    466-020/54/5-SC 20 SHARP CURVED 54 mm 5 mm
    466-020/54/10-SC 20 SHARP CURVED 54 mm 10 mm
    466-018/54/10 18 SHARP STRAIGHT 54 mm 10 mm
    467-022/100/2 22 SHARP STRAIGHT 100 mm 2 mm
    467-022/100/2-SC 22 SHARP CURVED 100 mm 2 mm
    467-022/100/5 22 SHARP STRAIGHT 100 mm 5 mm
    467-022/100/5-SC 22 SHARP CURVED 100 mm 5 mm
    467-022/100/5-BC 22 BLUNT CURVED 100 mm 5 mm
    467-022/100/10 22 SHARP STRAIGHT 100 mm 10 mm
    467-022/100/10-SC 22 SHARP CURVED 100 mm 10 mm
    466-021/100/5 21 SHARP STRAIGHT 100 mm 5 mm
    466-020/100/5 20 SHARP STRAIGHT 100 mm 5 mm
    466-020/100/5-SC 20 SHARP CURVED 100 mm 5 mm
    466-020/100/5-BC 20 BLUNT CURVED 100 mm 5 mm
    466-020/100/10 20 SHARP STRAIGHT 100 mm 10 mm
    466-020/100/10-SC 20 SHARP CURVED 100 mm 10 mm
    466-020/100/10-BC 20 BLUNT CURVED 100 mm 10 mm
    466-018/100/5 18 SHARP STRAIGHT 100 mm 5 mm
    466-018/100/10 18 SHARP STRAIGHT 100 mm 10 mm
    466-018/100/5-SC 18 SHARP CURVED 100 mm 5 mm
    466-018/100/5-BC 18 BLUNT CURVED 100 mm 5 mm
    466-018/100/10-SC 18 SHARP CURVED 100 mm 10 mm
    466-018/100/15 18 SHARP STRAIGHT 100 mm 15 mm
    466-016/100/6-SC 16 SHARP CURVED 100 mm 6 mm
    466-016/100/10-SC 16 SHARP CURVED 100 mm 10 mm
    467-022/150/5 22 SHARP STRAIGHT 145 mm 5 mm
    467-022/150/10 22 SHARP STRAIGHT 145 mm 10 mm
    467-022/150/10-SC 22 SHARP CURVED 145 mm 10 mm
    466-020/150/5 20 SHARP STRAIGHT 145 mm 5 mm
    466-020/150/5-SC 20 SHARP CURVED 145 mm 5 mm
    466-020/150/10 20 SHARP STRAIGHT 145 mm 10 mm
    466-020/150/10-SC 20 SHARP CURVED 145 mm 10 mm
    466-020/150/10-BC 20 BLUNT CURVED 145 mm 10 mm
    466-020/150/15 20 SHARP STRAIGHT 145 mm 15 mm
    466-020/150/15-SC 20 SHARP CURVED 145 mm 15 mm
    466-020/150/15-BC 20 BLUNT CURVED 145 mm 15 mm
    466-018/150/10 18 SHARP STRAIGHT 145 mm 10 mm
    466-018/150/10-SC 18 SHARP CURVED 145 mm 10 mm
    466-016/150/6-SC 16 SHARP CURVED 145 mm 6 mm
    466-016/150/10-SC 16 SHARP CURVED 145 mm 10 mm
    466-020/200/5 20 SHARP STRAIGHT 175 mm 5 mm
    466-020/200/10 20 SHARP STRAIGHT 175 mm 10 mm
    466-020/200/10-SC 20 SHARP CURVED 175 mm 10 mm
    466-020/200/20-SC 20 SHARP CURVED 175 mm 20 mm
